Kentec - Extinguishing System Control Panels

Founded in 1985, Kentec Electronic is one of the leading global manufacturers of fire alarm control panels with 240 employees in the manufacturing plant, head office and research and development departments. Today, Kentec is a wholly-owned subsidiary of Hochiki Corporation, headquartered in Japan with 100 years of heritage in the fire alarm industry.

Kentec has earned the title of world leader in producing and supplying analogue addressable fire alarm control panels and is the first choice of fire alarm system designers. Kentec products comply with EN54, EN12094, UL, FM, NFPA and marine standards.

Kentec Electronics Ltd logo.

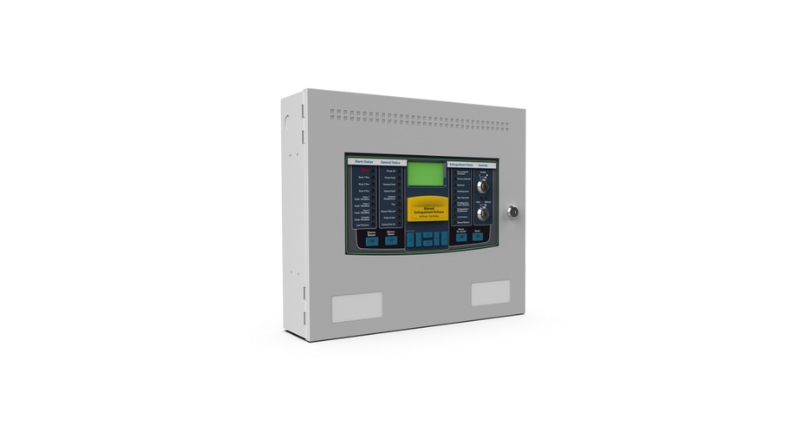

Sigma ZXT

Kentec Sigma ZXT

Features

  • Secure event logging 1000 events
  • Single area extinguishing panel
  • Dual extinguishing outputs with main/reserve configuration option
  • Dynamic LCD Display
  • Compatible with I.S. barriers
  • Non-latching zone input option to receive signals from other systems such as aspirating equipment
  • Countdown timer displays the time remaining until the release
  • Supports up to seven, Sigma ZSi four-wire status indicators (also compatible with Sigma SI status units for retrofit applications)
  • Supports up to seven XT ancillary output boards
  • Larger enclosure option is available
  • Approved and certified to EN12094-1, EN54-2 and EN54-4
  • Four configurable User passwords can identify who has accessed the panel and what changes were

Documents

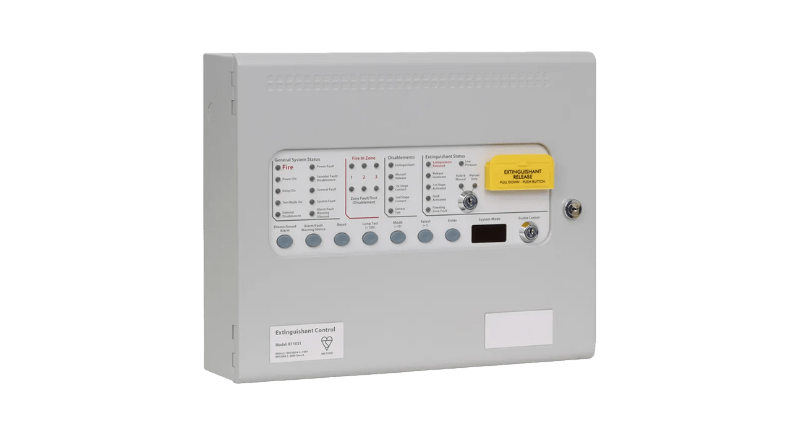

Sigma XT

Kentec Sigma XT

Features

  • Any single zone or any combination of zones can be configured to release
  • Configurable first-stage sounder delays
  • Configurable detection delays
  • Zero time delay upon manual release option
  • Compatible with I.S. barriers
  • Non-latching zone input option to receive signals from other systems such as aspirating equipment
  • Countdown timer shows the time remaining until release
  • Supports up to seven, four-wire status indicators
  • Configurable extinguishant delays up to 60 seconds in 5-second steps
  • Configurable extinguishant duration of up to 5 minutes in 5-second steps
  • Supports up to seven, four-wire status indicators
  • Built-in extract fan control
  • Approved and certified to EN12094-1, EN54-2 and EN54-4
  • UL and FM Approved versions are also available

Documents

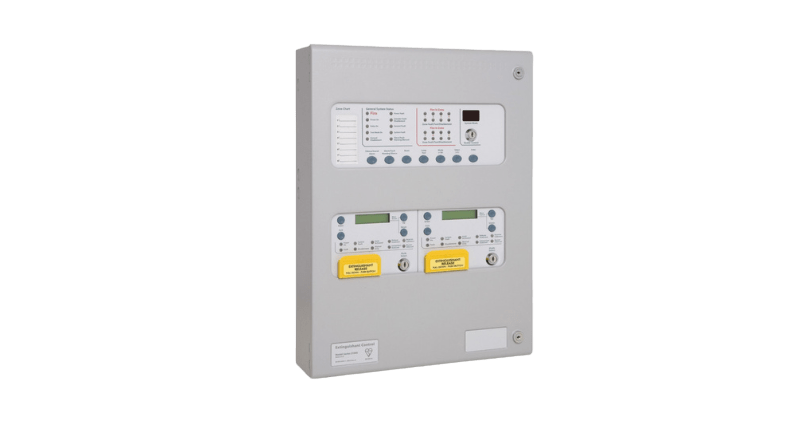

Sigma XT+

Kentec Sigma XT+

Features

  • Approved to EN12094-1, EN54-2 and EN54-4
  • 2, 4 or 8 detection zones
  • 1 to 4 extinguishant areas
  • Dual extinguishant outputs for each area (configurable as Main/Reserve)
  • First and second-stage sounder outputs for each area
  • First and second-stage volt-free changeover contacts for each area
  • Released volt-free contact per area
  • Fault volt-free contact per area
  • Programmable extinguishant delays
  • Programmable output duration
  • Countdown indicator shows the time until release in
    seconds
  • Mode select and manual release controls per area
  • Monitored remote manual release input
  • Monitored remote hold input
  • Monitored remote mode select (door interlock) input
  • Monitored remote-released pressure switch input
  • Monitored remote low-pressure switch input
  • Monitored Abort input
  • Serial connection for Sigma Si status units and ancillary boards

Documents

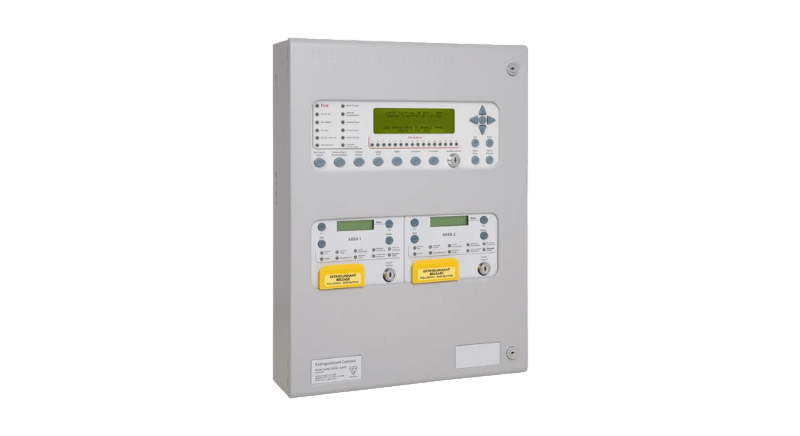

Syncro XT+

Kentec Syncro XT+

Features

  • Up to four extinguishant areas (custom build options are available)
  • Dual extinguishant outputs for each area (configurable as main/reserve)
  • First and second-stage sounder outputs for each area
  • First and second-stage volt-free changeover contacts for each area
  • Released volt-free contact per area
  • Fault volt-free contact per area
  • Programmable extinguishant delays
  • Programmable output duration
  • Countdown indicator shows the time until release in seconds
  • Mode select and manual release controls per area
  • Serial connections for Sigma Si status units and ancillary boards (K588)
  • Approved and certified to EN12094-1, EN54-2 and EN54-4

Documents

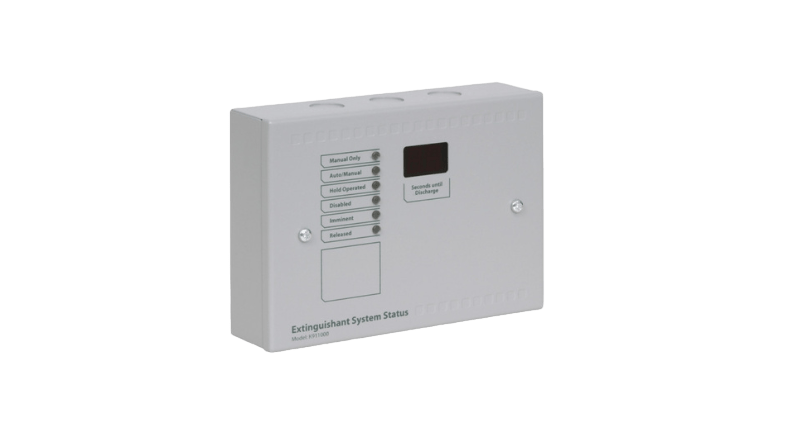

Sigma Si

Kentec Sigma Si

Features

  • Certified compliant with BS EN12094-1 when used with Sigma XT control equipment
  • High brightness LEDs
  • Detailed indication of the status of the control panel
  • Monitored data connection
  • Countdown timer shows the time remaining until the release
  • Manual only and Automatic & Manual mode select key switch option
  • Four-wire connection (data and power)
  • Protected dual action manual release switch option
  • Option for zonal fire and common fault indication with buzzer
  • Robust, high-quality enclosure
  • Easy access to terminals
  • Remote Auto/Manual door interlock input (monitored)
  • Remote Hold input (monitored)
  • Internal fault diagnosis indicators
  • Weatherproof IP65 versions available
  • Internal buzzer

Documents
