NSC - Analog Addressable Panels

NSC Sicherheitstechnik GmbH is a manufacturer of fire alarm products based in Germany. The company was founded in 2003. NSC develops and manufactures high-quality products for fire alarm systems in accordance with DIN EN standards, VdS and ISO9001. NSC fire alarm control panels are sold abroad and exported to more than 35 countries.

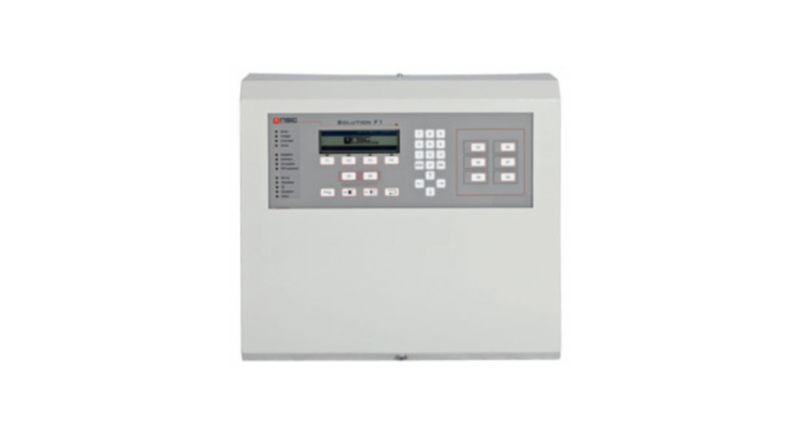

Solution F1

NSC Solution F1

Features

  • Modular, intelligent hybrid fire control panel range
  • Supports Hochiki ESP and Apollo XP95 / Discovery detectors
  • 2 – 18 loops in one standard housing
  • Brand new touch control panel
  • Graphics LCD module 240 x 64 as standard included on basic model
  • Integral Power supply 24 V DC with max. 6.7 A or 4.2 A as standard included
    32-bit high-performance CPU
  • Flash memory up to 8 MB and RAM memory up to 8 MB
  • Many powerful features included
  • Configuration software operated via modem or USB interface
  • Full redundant main board and full redundant loop cards as options

Solution F2

NSC Solution F2

Features

  • 1 or 2 loops
  • Graphic LCD screen 240 x 64
  • Event memory (up to 10,000 events)
  • Possibility of delivery in redundant version
  • Supports Hochiki and Apollo protocols in one exchange
  • 32-bit CPU
  • Configuration via USB
  • 2 conventional zones
  • 16 digital programmable outputs

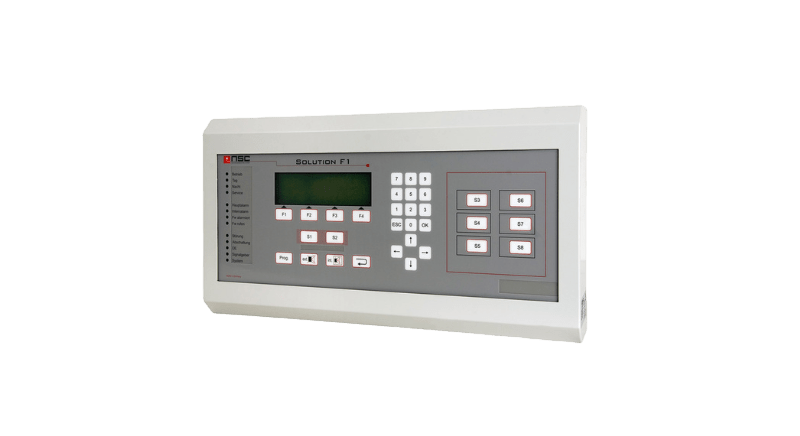

Paralelni tablo za Solution F1 i F2

Features

  • Full display of events from the panel
  • Main switchboard management
  • Simple assembly

Contact us with confidence

Have questions? Or do you simply want an expert’s advice on how to protect yourself from fire? Feel free to contact us and we will be happy to help you.
